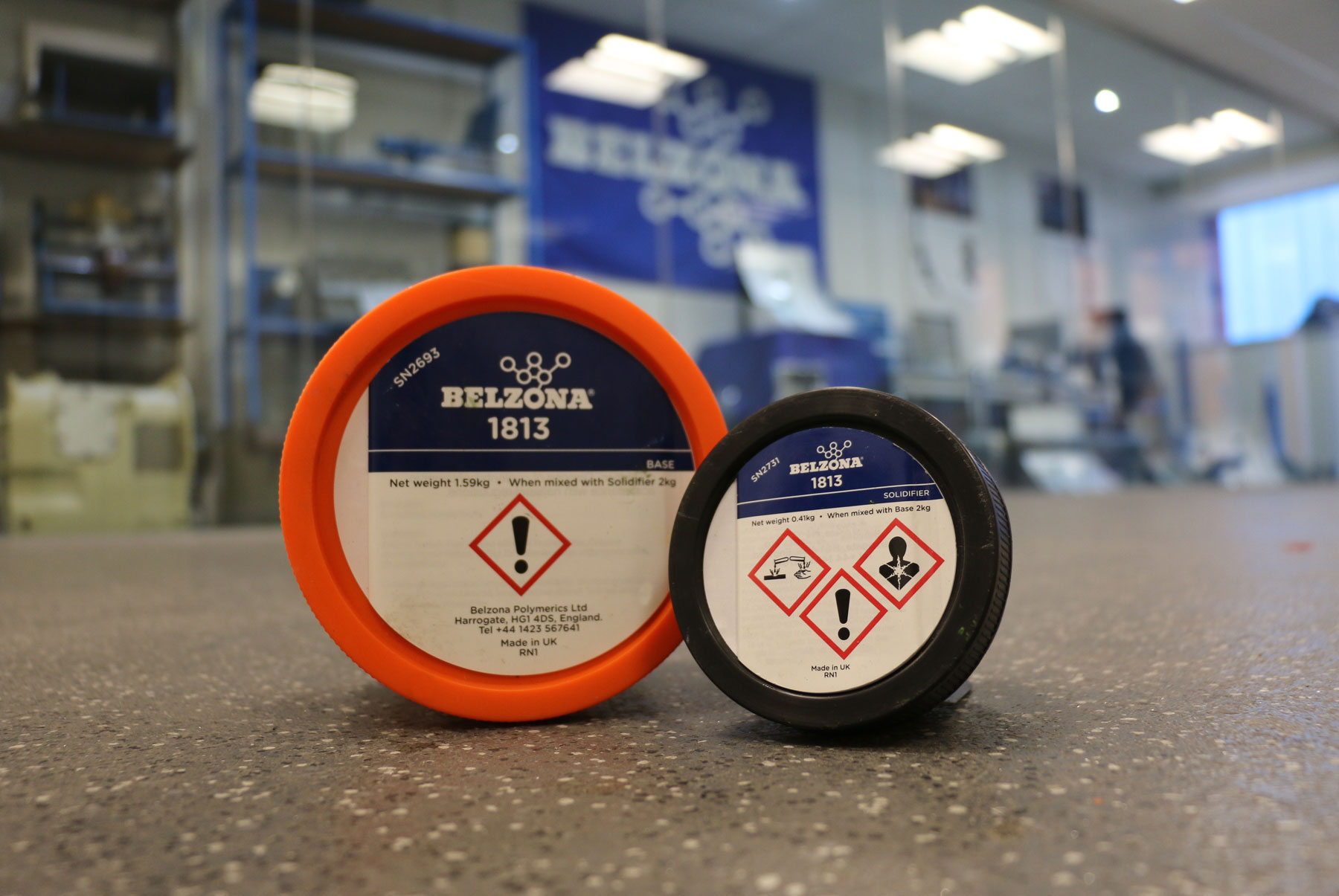

Belzona 1813

A highly abrasion resistant composite material for the repair and lining of metal surfaces operating at high temperatures.

A 2-part  paste-grade epoxy composite material combining abrasion resistant ceramic aggregates in a polymeric binder for the repair and protection of equipment operating at temperatures up to 200⁰C (392⁰F).

Belzona 1813 has been formulated to protect metal surfaces from abrasive attack at high temperatures and is resistant to a wide range of chemicals. This new generation technology creates a seamless but highly durable lining capable of being applied in thin or thick layers, providing greater opportunities to modify profiles and improve flow.

Key benefits:

  • Excellent resistance to impact and abrasion
  • Very high heat distortion temperature
  • Will not corrode
  • Solvent-free allowing it to be applied safely in confined areas
  • Excellent bonding to many metal surfaces including steel and cast iron
  • Application and cure at room temperature - no hot work involved
  • Long working life
  • Fast cure rate ensures prompt return to service
  • High mechanical strength

Applications for Belzona 1813 include:

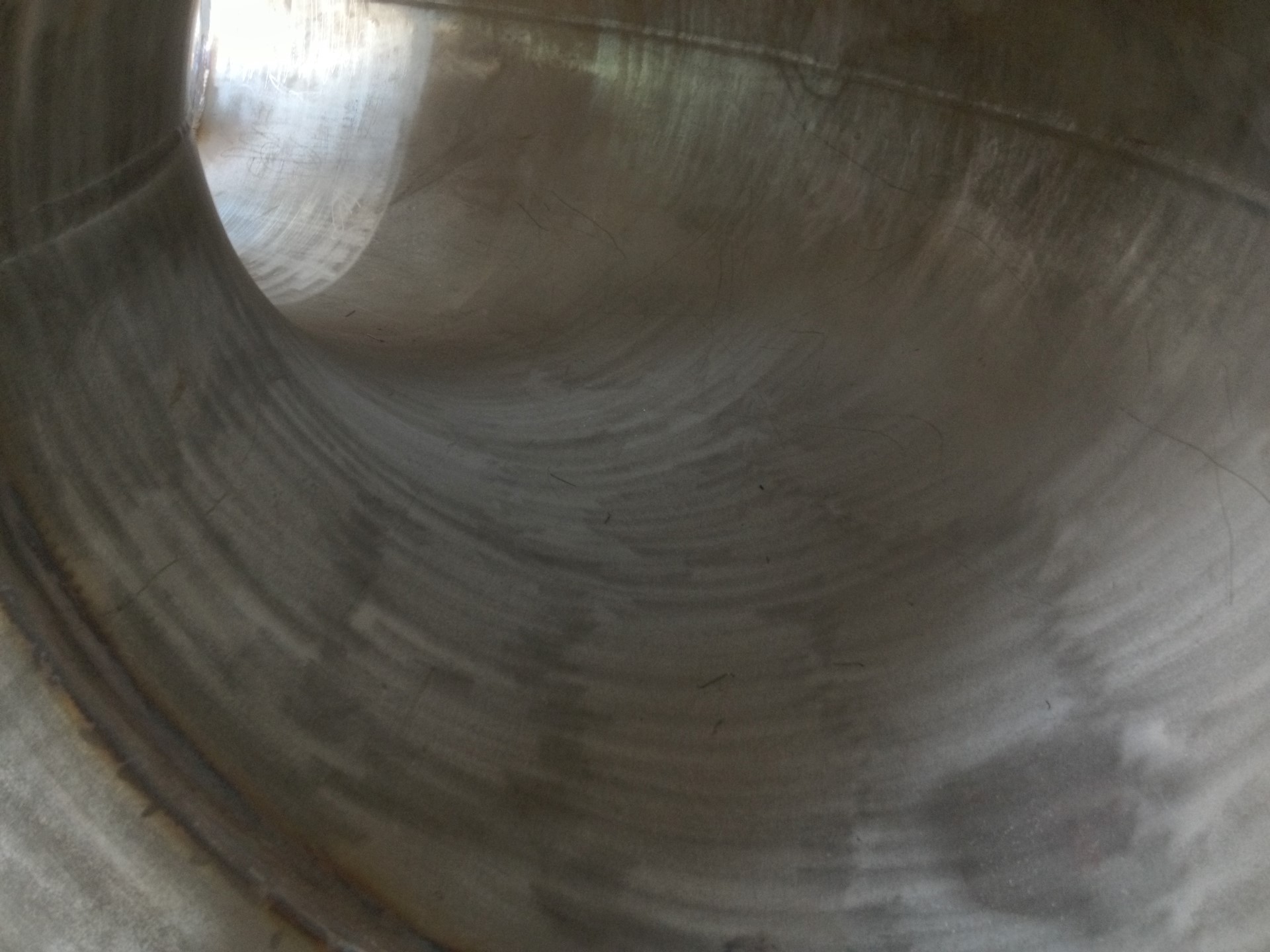

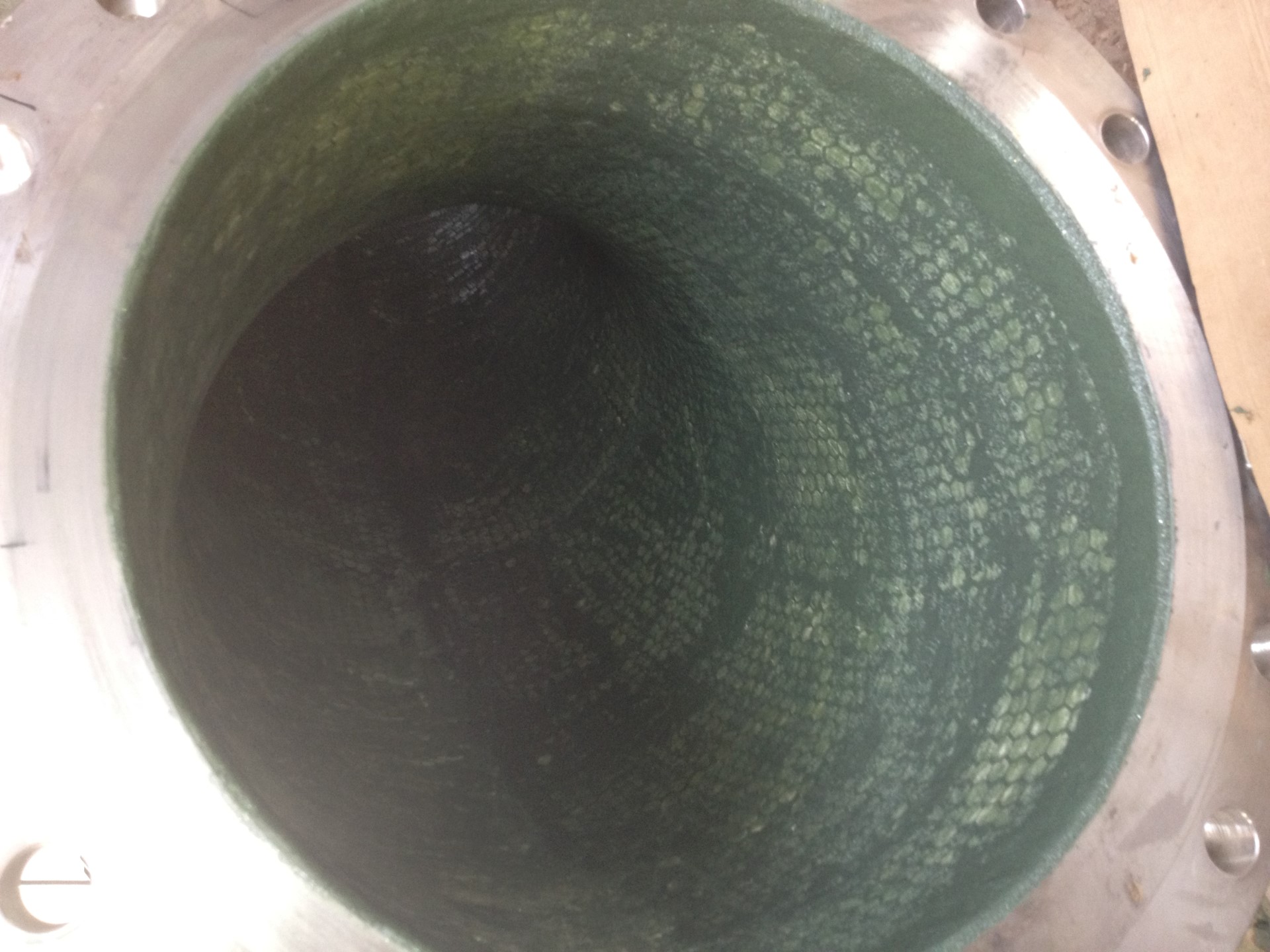

  • Protection of pipework, pipe bends, elbows and valves from damage due to abrasive attack
  • Bonding and grouting tiles and wear plates where high abrasion resistance is required

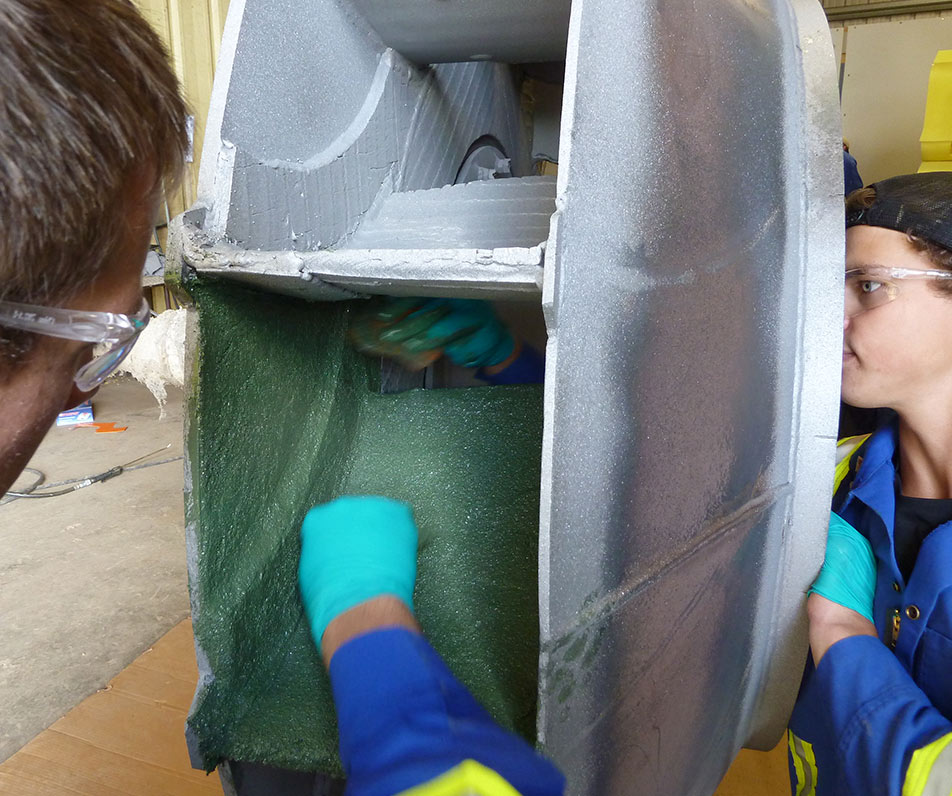

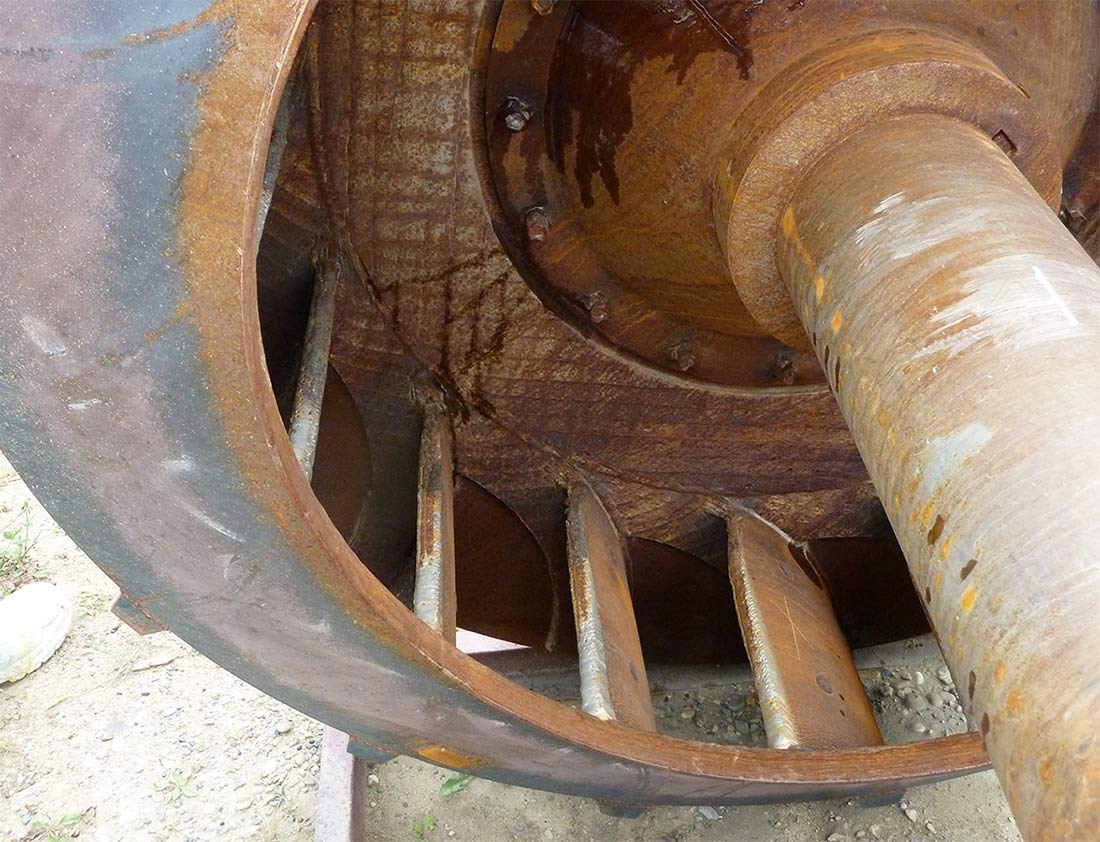

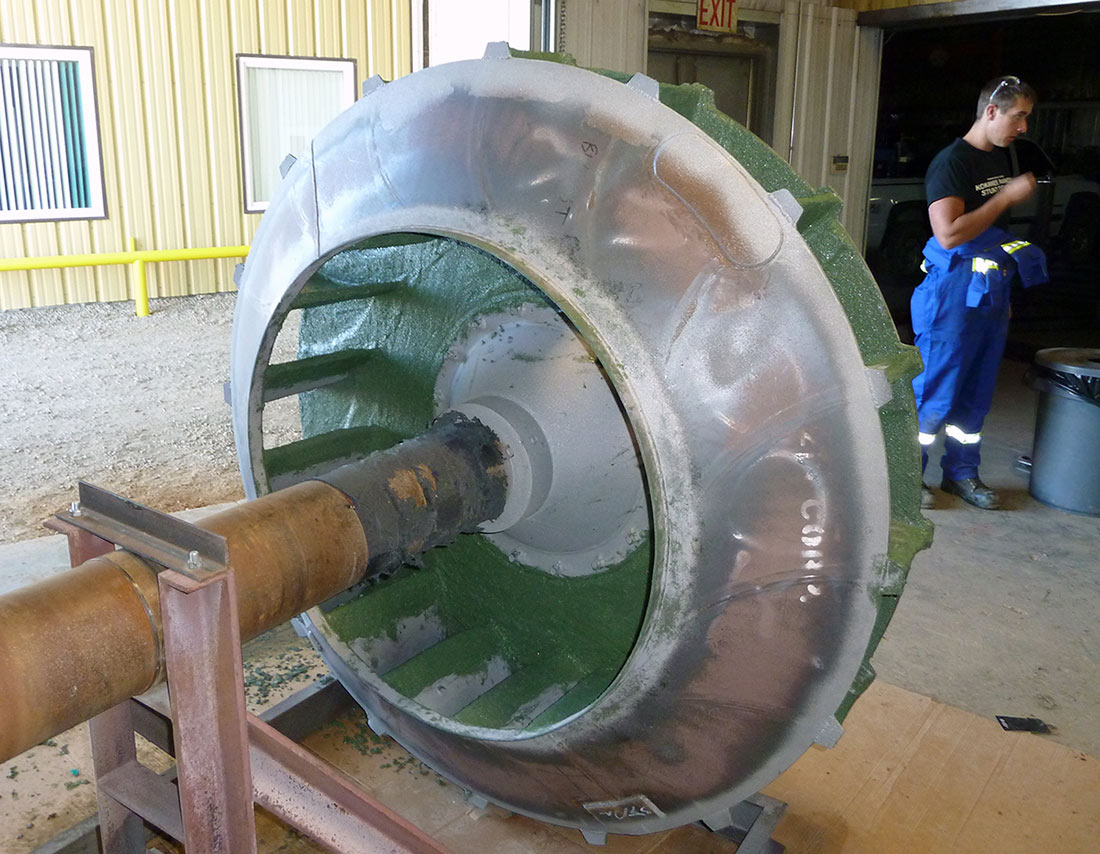

  • Repair of screw conveyors and centrifuges damaged by erosion and corrosion
  • Linings for worn hoppers, chutes, mixer blades and other equipment subject to abrasion

* All products are subject to regional restrictions. Check with your local Distributor for more information
