Belzona 7111i

Belzona 7111 (Industrial Grade)

Specially designed to endure the physical and thermal shock common to Industrial environments.

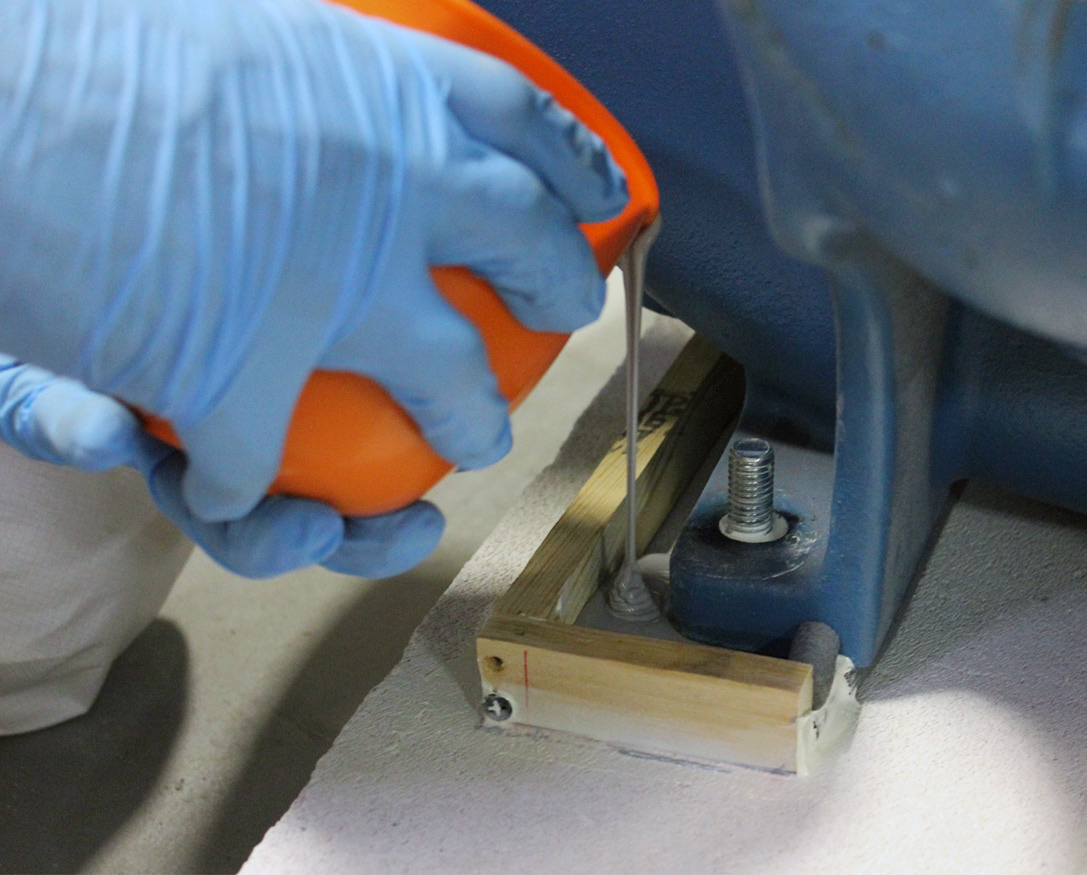

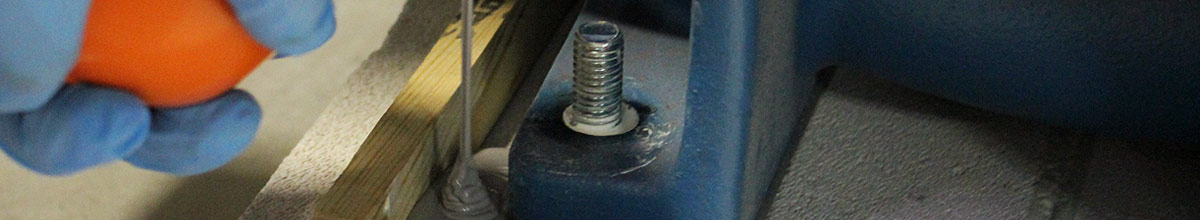

A cost-effective, 2-part, 100% solids chocking/grouting material designed to endure the physical and thermal shock common in industrial environments.  Belzona 7111 is pourable and is specially formulated to spread out evenly across irregular surfaces.

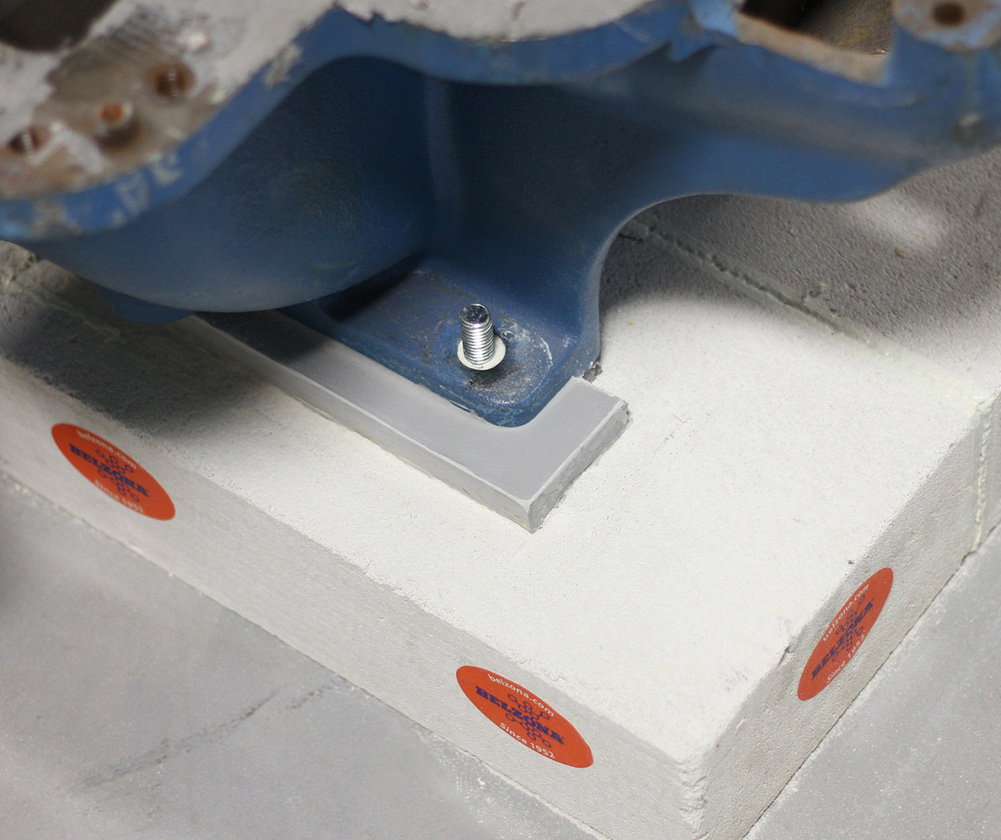

It is ideal for repairing damaged foundations to support and maintain precise alignment under machinery ensuring effective bearing underneath, where performance and operating reliability are critical.

Key Benefits:

  • Pressure, impact and vibration resistant
  • Provides precise equipment alignment
  • Dampens machine noise and vibration
  • Prevents loosening of threaded bolts
  • High load-bearing capacity is achieved for the structure
  • Reduced installation times
  • Does not require heat or special tools

Applications for Belzona 7111 include:

  • Pumps
  • Generators
  • Steam and gas turbines
  • Wind turbine foundations
  • Compressors
  • Blowers
  • Engines
  • Plate mills electric motors
  • Pulverizers
  • Crane rails
  • Lathes
  • Gear drives
  • Ball mills
  • Rail car unloaders
Key technical data:
Cure Time 60°F/15°C - 48 hours
68°F/20°C - 24 hours
86°F/30°C - 12 hours
Volume Capacity (6.95kg) 4360 cu.cm (266 cu.in) per 6.95kg unit
Gel Time 45 minutes (68°F/20°C)
Shelf Life 3 years when stored between 32°F/0°C  and 86°F/30°C
Compressive Strength (ASTM D695) 14930 psi / 102.9 MPa
Tensile Strength (ASTM D638) 6410 psi / 44.2 MPa
Flexural Strength (ASTM D790) 9580 psi /66.1 MPa
Shear Strength (ASTM D732) 6590 psi / 45.4 MPa
Unit size 6.95kg
Availability* Global

* All products are subject to regional restrictions. Check with your local Distributor for more information
